Filtrine FC-107-14-VP Drinking Fountain

Wall-Mounted, Single Bowl, Tamper Resistant, Purifier/No-Fan Chiller

FC-107-14-VP

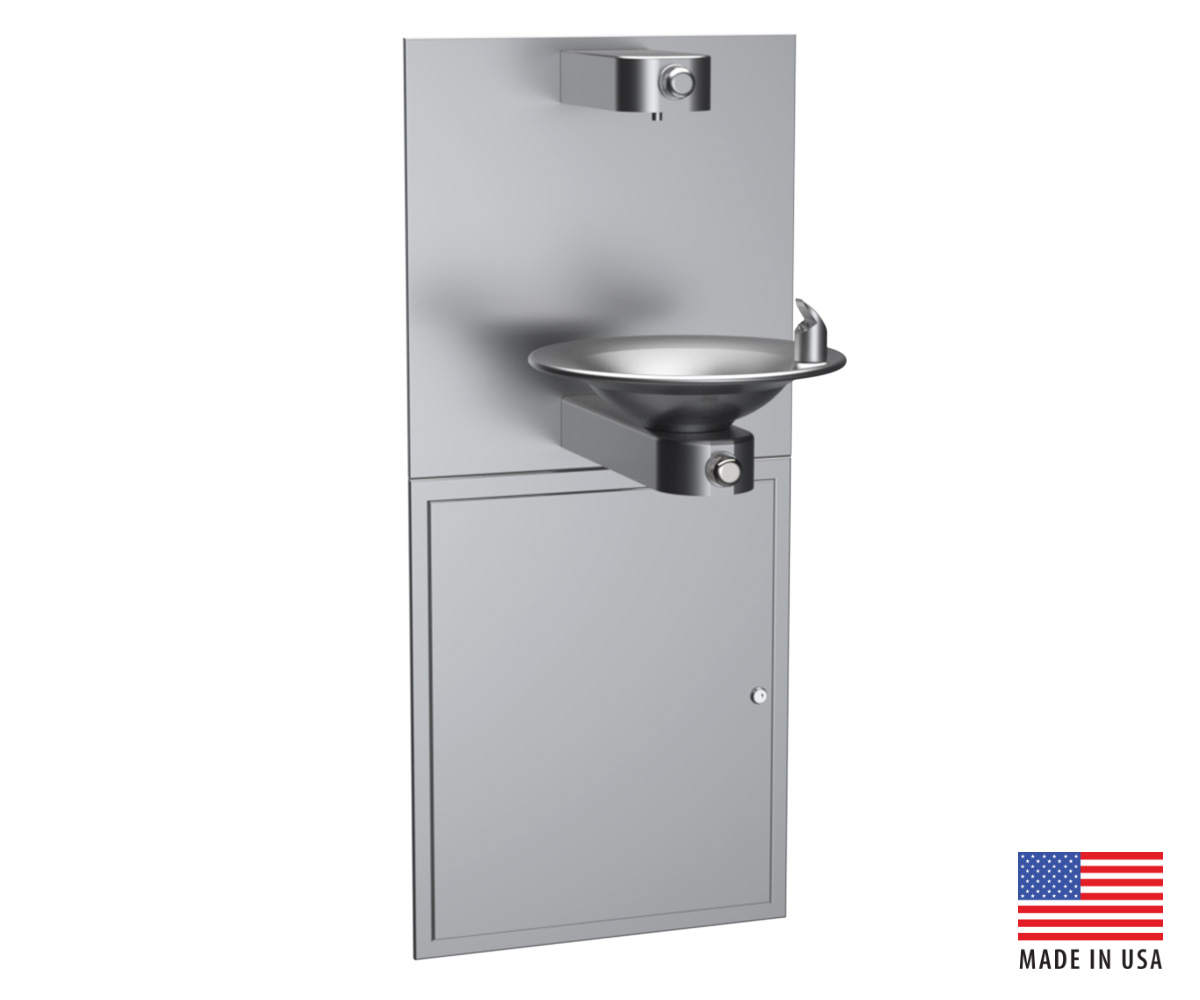

This vandal proof model combines our distinctive 107-14 fountain with a vandal proof bottle filler (along with other vandal proof features) and a no louver chiller/purifier in the cabinet below. Made in your choice of 16 gauge stainless steel or bronze, with 14 gauge support arms, the fountain bowl design features a 1/8" rolled edge and concealed seam. The chiller stores (2) gallons of chilled/purified water (serving a population of 100). The Taste Master® water purifier with 0.5 micron carbon block element removes lead, particles, tastes, odors and water-borne pathogens. Matching key-lock access door provides chiller/purifier access and security. Durable and beautiful, these fountains are available in a wide range of finishes and options including "Hands Free".

Select Your Configuration Options:

Options

Fountain Controls, Bottle Fillers, Cover Plates, Tamper-resistant, etc.

Stainless Steel Finishes

Bronze Finishes

Specifications:

The Model FC-107-14-VP is a wall-mounted single bowl drinking water fountain. The 14” diameter 16 ga. round bowl has an integral drain. Overall fountain height is 3-1/4”. The hand-polished bronze finish comes in either #4 Satin (standard), or in #8 Mirror or Oil-Rubbed or Statuary Bronze. The hand-polished stainless steel drinking fountain and cover plate can be finished in your choice of either #4 Satin (standard), or #8 Mirror. The copper/brass waterways are 100% lead-free—NO PLASTIC TUBING/CONNECTORS ARE USED. The  Filtrine Taste Master® water purifier and chiller are located behind access panel directly below fountain.

Filtrine’s FC-107-14-VP fountain  meets or exceeds ADA requirements for spout height, spout location, controls and clearances as specified in the Federal Register.

Details

Receptor: 14” diameter with 1/8” radius rolled edge and concealed seam — in 16 gauge

Underbowl: Raised from support arm by 1/2” collar to provide an aesthetically pleasing profile.

Support Arm: 4-3/8” wide by 2-5/8” high — in 14 gauge

Mounting Plate: 1/4” steel plate 20-1/2” high for vertical strength, 15-1/2” wide with 3/8”steel tongue projecting into support arm for maximum horizontal stability

Cover Plate: 16 ga stainless steel or bronze, 20″W x 3/8″D x 21″H, fits over mounting plate, secured by fountain arm

Purifier: Taste Master Purifier

Chiller: Wall-insert Model 66NL chiller with 2 gallon storage, charged with HFO R513A “Ozone Safe – Low GWP” refrigerant

Standard Features: Vandal proof 14 gauge stainless steel bottle filler, mounted on 3/8″ steel mounting tongue above lower bowl; soft touch button with set screw for security; matching bottom plate secured with “snake eye” screws
