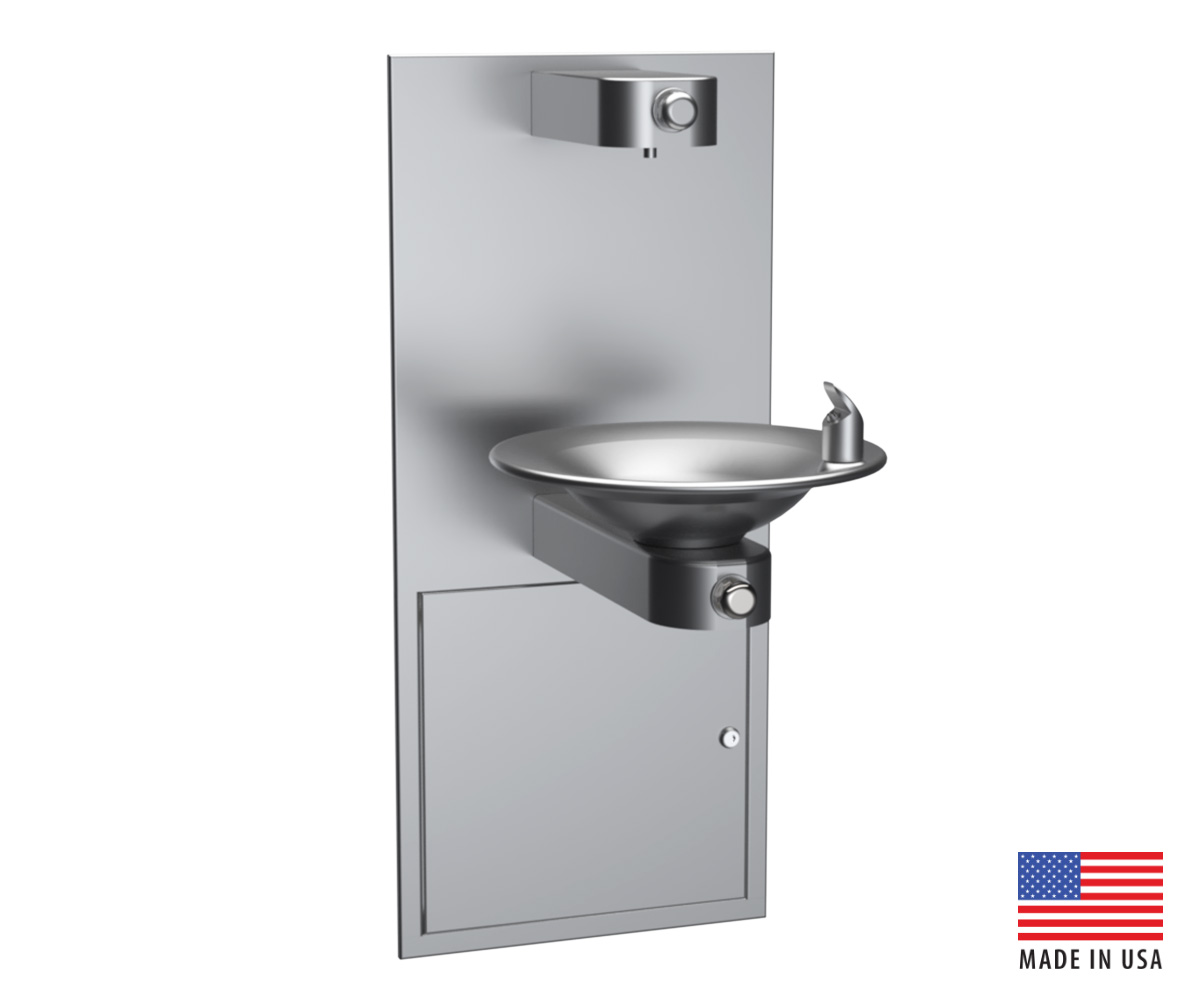

Filtrine 107-14-VP Drinking Fountain

Wall-Mounted, Single Bowl, Tamper Resistant

107-14-VP

This vandal proof model combines our classic 107-14 fountain with multiple vandal proof features.  Made in your choice of 16 gauge stainless steel or bronze, with 14 gauge support arms, the fountain bowl features a 1/8" rolled edge and concealed seam. Durable and practical, these fountains are available in a wide range of finishes and options including "Hands Free".

Select Your Configuration Options:

Options

Fountain Controls, Bottle Fillers, Cover Plates, Tamper-resistant, etc.

Bronze Finishes

Stainless Steel Finishes

Specifications:

The Model 107-14-VP is a vandal proof wall-mounted drinking water fountain. The 14” diameter 16 ga. round bowl has an integral drain. Overall fountain height is 3-1/4”. The hand-polished bronze finish comes in either #4 Satin (standard), or in #8 Mirror or Oil-Rubbed or Statuary Bronze. The hand-polished stainless steel drinking fountain and cover plate can be finished in your choice of either #4 Satin (standard), or #8 Mirror. The copper/brass waterways are 100% lead-free—NO PLASTIC TUBING/CONNECTORS ARE USED. The  Filtrine Taste Master® water purifier is located behind access panel directly below fountain.

Filtrine’s 107-14-VP fountain  meets or exceeds ADA requirements for spout height, spout location, controls and clearances as specified in the Federal Register.

Details

Receptor: 14” diameter with 1/8” radius rolled edge and concealed seam — in 16 gauge

Underbowl: Raised from support arm by 1/2” collar to provide an aesthetically pleasing profile.

Support Arm: 4-3/8” wide by 2-5/8” high — in 14 gauge

Mounting Plate: 1/4” steel plate 20-1/2” high for vertical strength, 15-1/2” wide with 3/8”steel tongue projecting into support arm for maximum horizontal stability

Cover Plate: Made of 16 ga stainless steel or bronze, 16″W x 3/8″D x 21″H, and fits over mounting plate, secured by fountain arm.

Standard Features: Vandal proof 14 gauge stainless steel bottle filler, mounted on 3/8″ steel mounting tongue above lower bowl; soft touch button with set screw for security; matching bottom plate secured with “snake eye” screws

Download CAD Drawings and BIM Models

Visit the Filtrine Model 107-14-VP CADdetails page to download CAD drawings and BIM models. Formats include: 2D DWG, DWF, DXF, GIF, PDF (CAD), VWX. 3D file formats include: RFA, SketchUp.
