Filtrine B103-107-14-HL Water Bottle Filling Station/ High/Low Drinking Fountain

Wall-Mounted, Side-By-Side Combination Bottle Filling Station/Dual Bowl Drinking Fountain

B103-107-14-HL

This unit combines two of Filtrine's most popular water dispensers all in one, the B103 Water Bottle Filling Station (the original in-wall bottle filler), and two non-recessed 107-14 drinking fountains. Along with promoting “green” practices among building occupants, the bottle filling station/drinking fountain is the sustainable alternative to traditional methods of serving water, and can be located almost anywhere. Unlike competitive products on the market, Filtrine's contemporary stainless construction and sleek profile provides an attractive, durable addition to any interior and allows for easy cleaning.

Order Parts Request a Quote Find a Representative

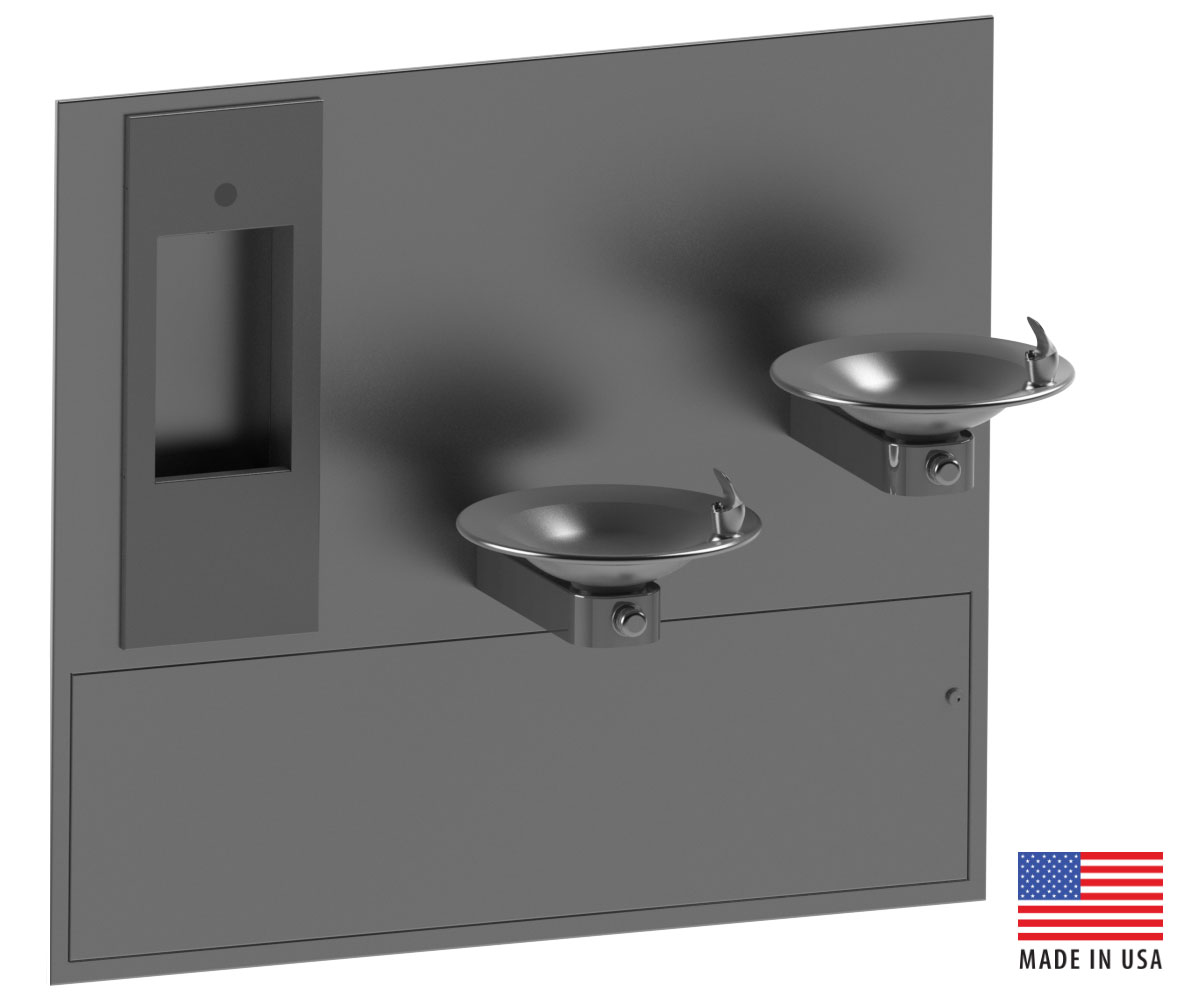

Filtrine Model B103-107-14-HL Combo Fountain

Specifications:

Each Model B103 is constructed with a one-piece cover plate. The exterior is made without seams, exposed edges or screws. The two 107-14 16 ga. 14” diameter stainless steel or bronze round bowls each have an integral drain. Overall fountain height of 3-1/4” includes bowl and support arm. Both are available with limitless finish options, customized logos, and ability to fit in a standard 4″ wall.

Details

Receptor: [2] 14” diameter bowls with 1/8” radius rolled edge and concealed seam

Underbowl: Raised from support arm by 1/2″ collar

Support Arm: [2] 4-3/8” wide by 2-5/8” high in 14 gauge stainless

Mounting Plate: 1/4” steel plate 15-1/2” high for vertical strength, 31-1/2” wide with 3/8”steel tongue projecting into support arm for maximum horizontal stability

Cover Plate: Made of 16 ga stainless steel or bronze, 48″W x 3/8″D x 28″H, and fits over mounting plate

Request Guide Specs

Videos

Filtrine’s Dual Purpose Vandal-proof Drinking Fountain with Bottle Filler – Model 107-16-HL-VP Demo

Downloads

Download All

Related Applications

Civic & Culture

Unlimited finish options and colors ensure that the Filtrine drinking fountains/bottle filling stations in your building or museum will have the same aesthetic quality and beauty as the décor or the artifacts being displayed. Filtrine’s drinking fountains and bottle filling stations are architecturally designed and the most durable in the industry. No other manufacturer offers a wider variety of drinking fountain/bottle filling station models and materials, including solid bronze. Any Filtrine drinking fountain/bottle filling station can be made “Hands Free”.

Gym Water Fountains

Filtrine has long been the brand of choice for several national gym chains because of the proprietary drinking water chiller/purifier design (Model FC and FCC). The growing popularity of water bottle refilling at gyms increases the likelihood of peak demand times (multiple users filling their bottles before and after fitness classes). Filtrine drinking water chillers feature an immersion coil evaporator that allows for storage of a large volume of chilled water. Vandal proof and “Hands Free” models cut down on tampering and germ transmission.

Colleges & University Water Fountains

Filtrine drinking fountains/bottle filling stations can meet and exceed LEED, Living Building Challenge (LBC) Red List and other green architectural requirements. Sustainability is especially important to higher education. Many colleges and universities looking to reduce bottled water waste and energy costs. All Filtrine drinking fountains/bottle filling stations are available with “Hands Free” and manual water bottle filler options to allow for the use of refillable bottles. Additionally, Filtrine drinking water chillers utilize immersion coil evaporators which provide a higher capacity of chilled drinking water while saving energy over traditional cooling technologies.

Hotel & Retail Water Fountains

The ability to match any décor makes the durable, beautiful Filtrine drinking fountains/bottle filling stations a dramatic feature either indoors or outdoors. Filtrine’s drinking water equipment graces hotel lobbies and retail outlets across the US and overseas. Whether the building is modern or historic, the wide variety of models, materials and finishes including bronze, stainless steel and more, are popular with architects and engineers. Operations are a breeze with “Hands Free”, vandal proof, electric water cooler and access panel options.

Industrial Water Fountains

For extreme environments such as those found at oil & gas or heavy-duty manufacturing facilities, consider the Filtrine INDESTRUCT Model IM industrial electric water coolers. In addition to saving money by eliminating bottled water shipping and storage costs, they are sustainable and durable enough for any environment. Other models include high ambient Model IM-HA, and explosion-proof Model IM-XP. For information on “Hands Free” sensor activation, contact your local Filtrine Drinking Water Representative.

Office & Headquarters

Your office or headquarters interior design will be enhanced by a stylish and beautiful Filtrine drinking fountain and/or bottle filling station that can either blend into the background or stand out as an architecturally pleasing fixture. When Filtrine office building drinking water dispensing equipment is installed, employees are able to refill their personal bottles or glasses with chilled lead-free, great tasting water. Any Filtrine office drinking fountain/bottle filling station can be made “Hands Free”.

Parks

Filtrine offers a wide variety of drinking fountains and bottle filling stations that can be installed outdoors in parks and public spaces. This makes it easy to find the appropriate style of outdoor drinking fountain or bottle filling station model for arts and historic districts, downtowns and public squares. Any Filtrine drinking fountain/bottle filling station can be made “Hands Free”.

Religious

The wide variety of Filtrine drinking fountain and bottle filling station bronze finishes enhance many church, mosque or temple’s interior design. Filtrine’s unique solid bronze drinking fountains/bottle filling stations have long been sought by national religious institutions. Any Filtrine drinking fountain/bottle filling station can be made “Hands Free”. To deliver chilled fresh tasting purified water to multiple Filtrine drinking fountains/bottle filling stations, Filtrine remote chiller/purifiers are installed. They are hidden away behind the wall or in the ceiling.

Schools

School systems throughout the US have become concerned about lead in their buildings’ drinking water. Old pipes and untreated city water are the main issues. Filtrine has two ways for schools to remove lead from drinking water.

Filtrine’s vandal proof drinking fountains, bottle filling stations and electric water coolers are popular because of their durability. Point of use drinking water chillers and purifiers can be added to drinking fountains and bottle filling stations to eliminate lead, organic tastes/odors, chlorine taste/odor and pathogens. Any Filtrine drinking fountain/bottle filling station can be made “Hands Free” to cut down on germ transmission.
Filtrine’s point of entry water filtration system uses pre-filters, purifiers and optional UV sterilizers. It delivers lead-free water throughout the school building. Visit Point of Entry Water Filtration Explained for more information.
