Filtrine 90-TM Drinking Fountain

Wall-Mounted, Single Bowl, Purifier

90-TM

The Model 90-TM combines the Model 90 fountain with a Taste Master water purifier in the wall below. Filtrine’s Model 90 series non-recessed drinking water fountains sport a distinctive box shape. These fountains may be made in virtually any material, but are normally manufactured in stainless, bronze, or polymer aggregate. Standard stainless or bronze fountains are made in 16 gauge. Model 90 fountains can be easily customized with a variety of safety and convenience features. Consider an optional bottle filler with "Hands Free" sensor or manual operation.

Order Parts Request a Quote Find a Representative
Filtrine Model 90-TM Drinking Fountain
Filtrine Model 90-TM Drinking Fountain

Select Your Configuration Options:

  • Step 1: Choose your options

    No options have been selected. Please click on images on the right to add to your Request a Quote form. >>

  • Step 2: Choose your finishes

    No finish has been selected. Please click on image on the right to add to your Request a Quote form. >>

Options

Fountain Controls, Bottle Fillers, Cover Plates, Tamper-resistant, etc.

Stainless Steel Finishes

Bronze Finishes

Specifications:

The Model 90-TM is a wall-mounted drinking water fountain. The 12 5/8” width rectangle design holds a 10 1/2″ 16 ga. round bowl with an integral drain.  The hand-polished bronze finish comes in either #4 Satin (standard), or in #8 Mirror or Oil-Rubbed or Statuary Bronze. The hand-polished stainless steel drinking fountain and cover plate can be finished in your choice of either #4 Satin (standard), or #8 Mirror. The copper/brass waterways are 100% lead-free—NO PLASTIC TUBING/CONNECTORS ARE USED. The  Filtrine Taste Master® water purifier is secured behind the 16″H locking hinged door in cabinet directly below fountain.

Filtrine’s 90-TM fountain can be built to ADA requirements for spout height, spout location, controls and clearances as specified in the Federal Register.

Details

Receptor: 12 5/8” width with 10 1/2″ bowl, seamless edges, and rectangular design in 16 gauge.

Mounting Plate: 1/4” steel plate, 15 1/2″W x 10 1/2″H or 20 1/2” high with the optional bottle filler.

Cover Plate: 16 ga stainless steel or bronze, 16″W x 3/8″D x 26″H (or 36” H with optional water bottle filler), and fits over mounting plate, secured by fountain arm.

Purifier: Taste Master Purifier

Request Guide Specs

Videos

Downloads

Download All

Related Models

Filtrine 90 Drinking Fountain

Wall-Mounted, Single Bowl
90
Filtrine Model 90 Drinking Fountain
Learn More

Filtrine 90-WC Drinking Fountain

Wall-Mounted, Single Bowl
90-WC
Filtrine Model 90 Drinking Fountain
Learn More

Filtrine 90-TM Drinking Fountain

Wall-Mounted, Single Bowl, Purifier
90-TM
Filtrine Model 90-TM Drinking Fountain
Learn More

Filtrine FC-90 Drinking Fountain

Wall-Mounted, Single Bowl
FC-90
Filtrine Model FC-90 Drinking Fountain
Learn More

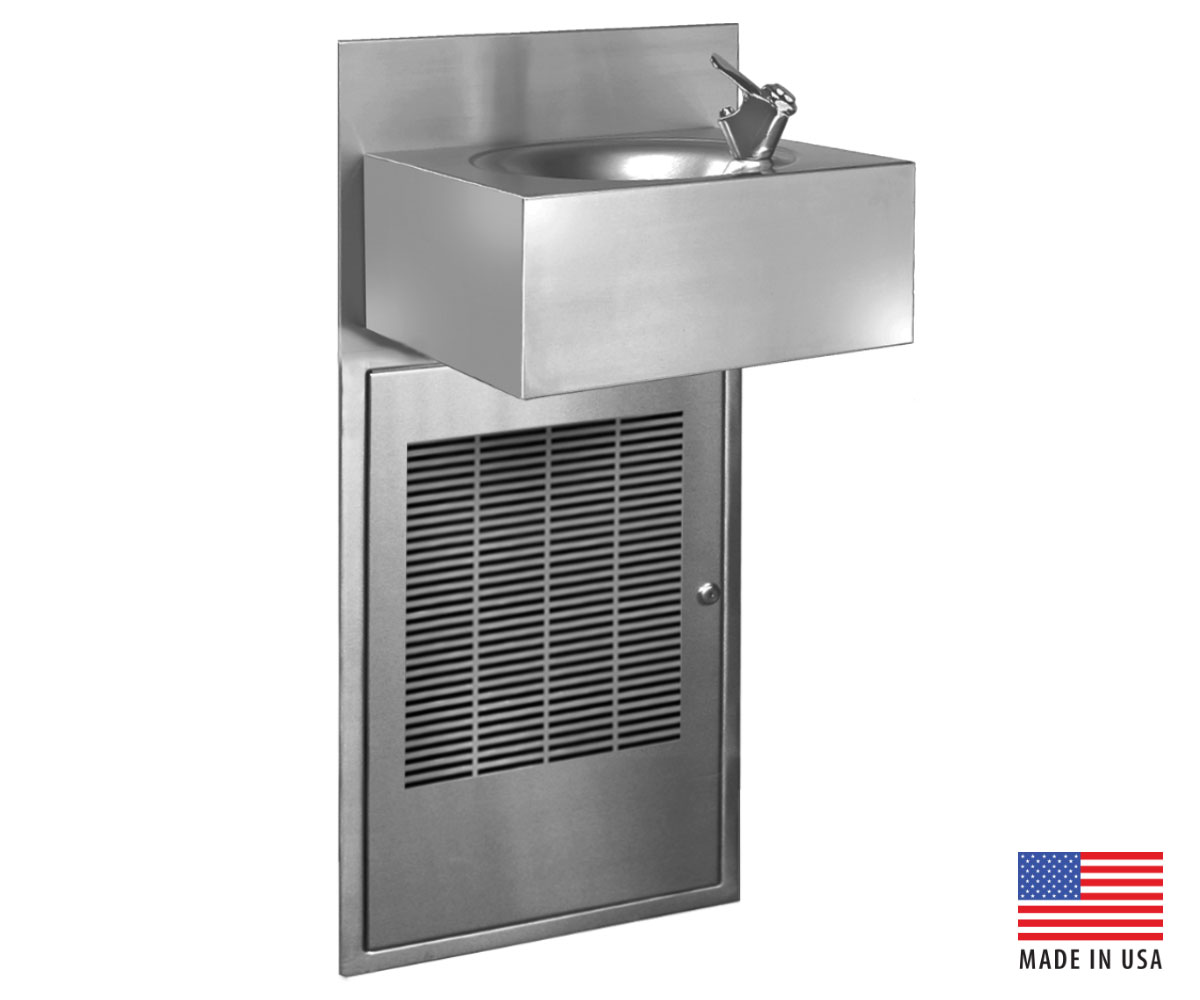

Filtrine FCC-90 Drinking Fountain

Wall-Mounted, Single Bowl
FCC-90
Filtrine Model FCC-90 Drinking Fountain
Learn More

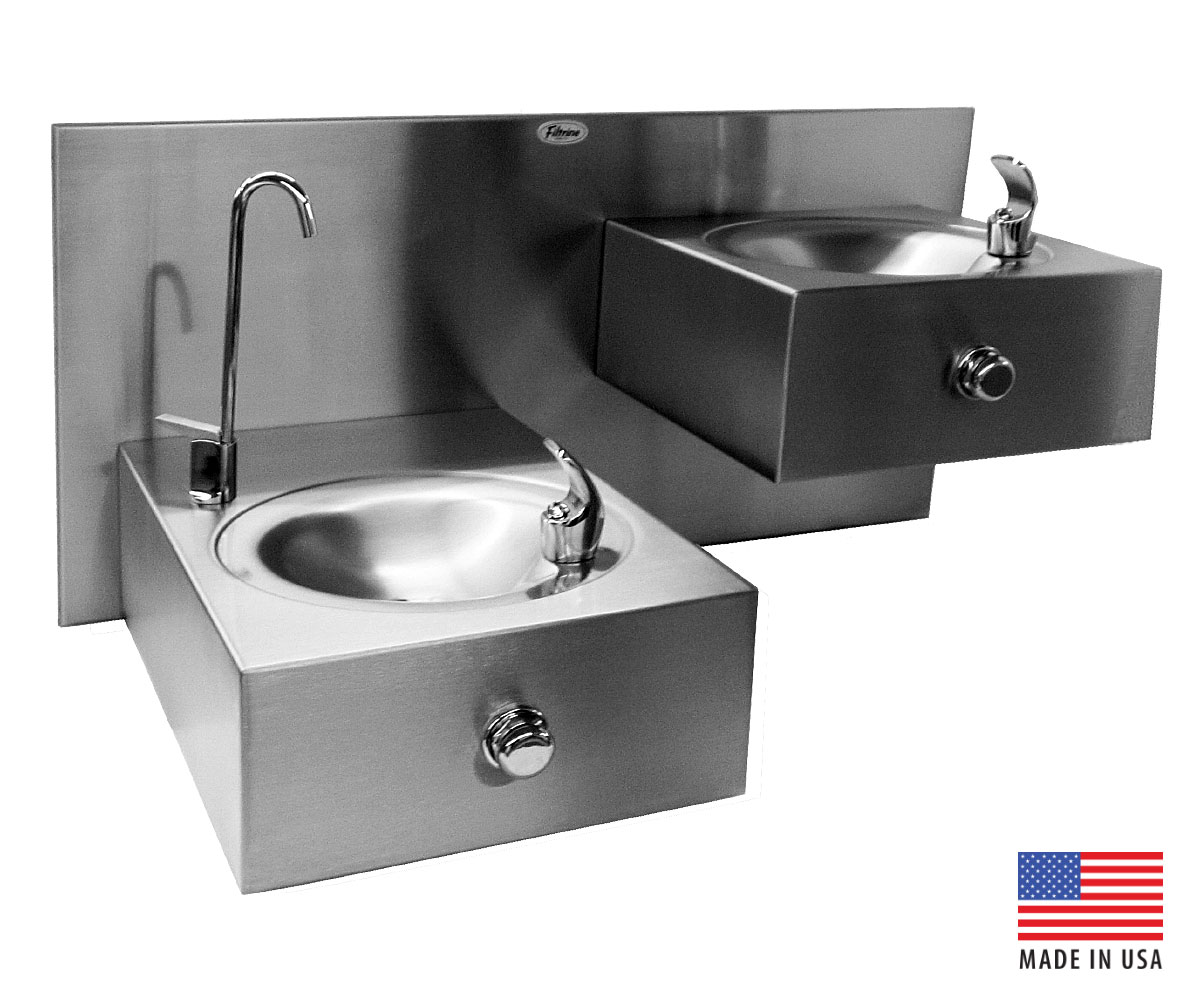

Filtrine 90-HL High/Low Drinking Fountain

Wall-Mounted, Dual Bowl
90-HL
Filtrine Model 90-HL Drinking Fountain
Learn More

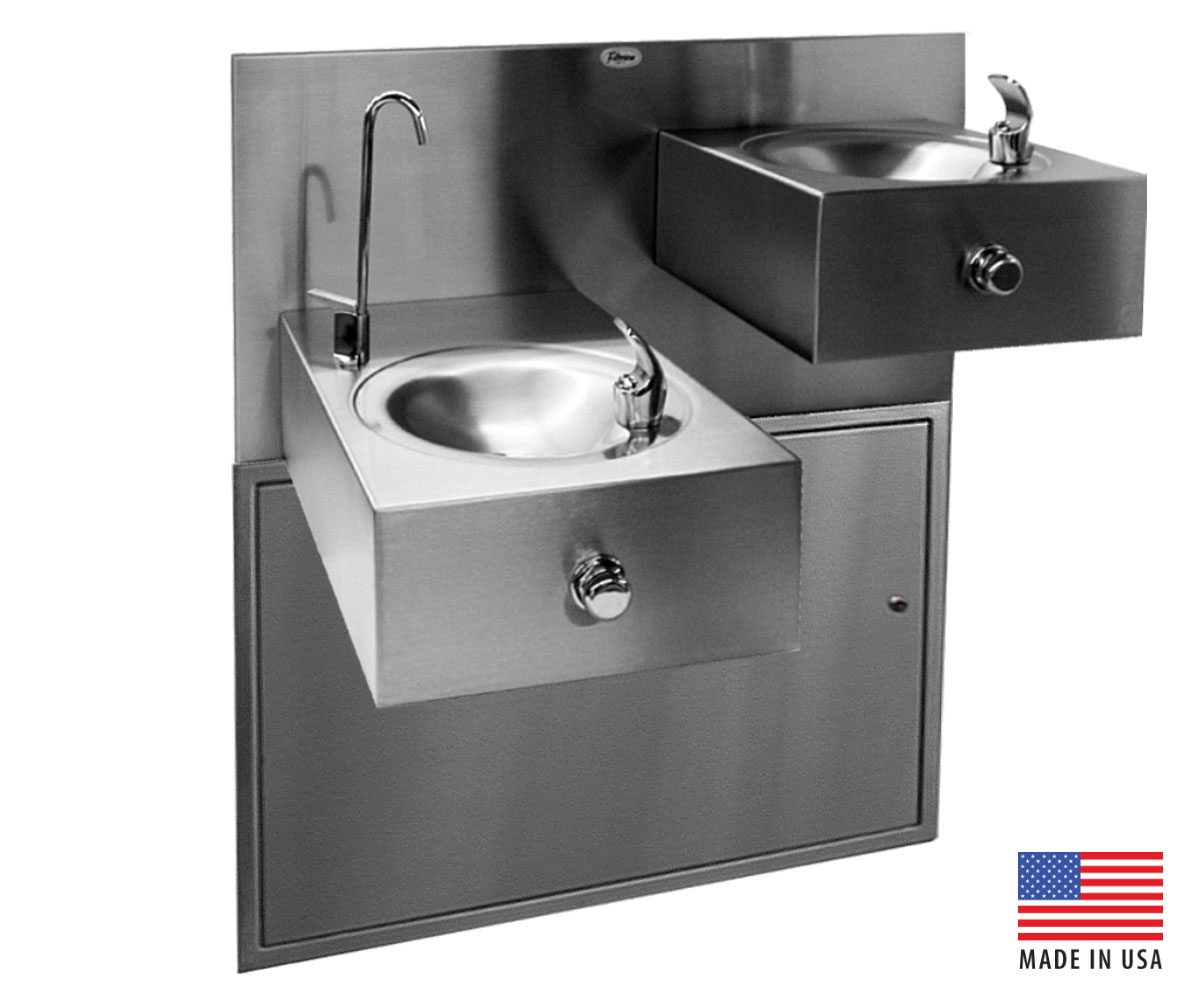

Filtrine 90-HL-TM High/Low Drinking Fountain

Wall-Mounted, Dual Bowl, Purifier
90-HL-TM
Filtrine Model 90-HL-TM Drinking Fountain
Learn More

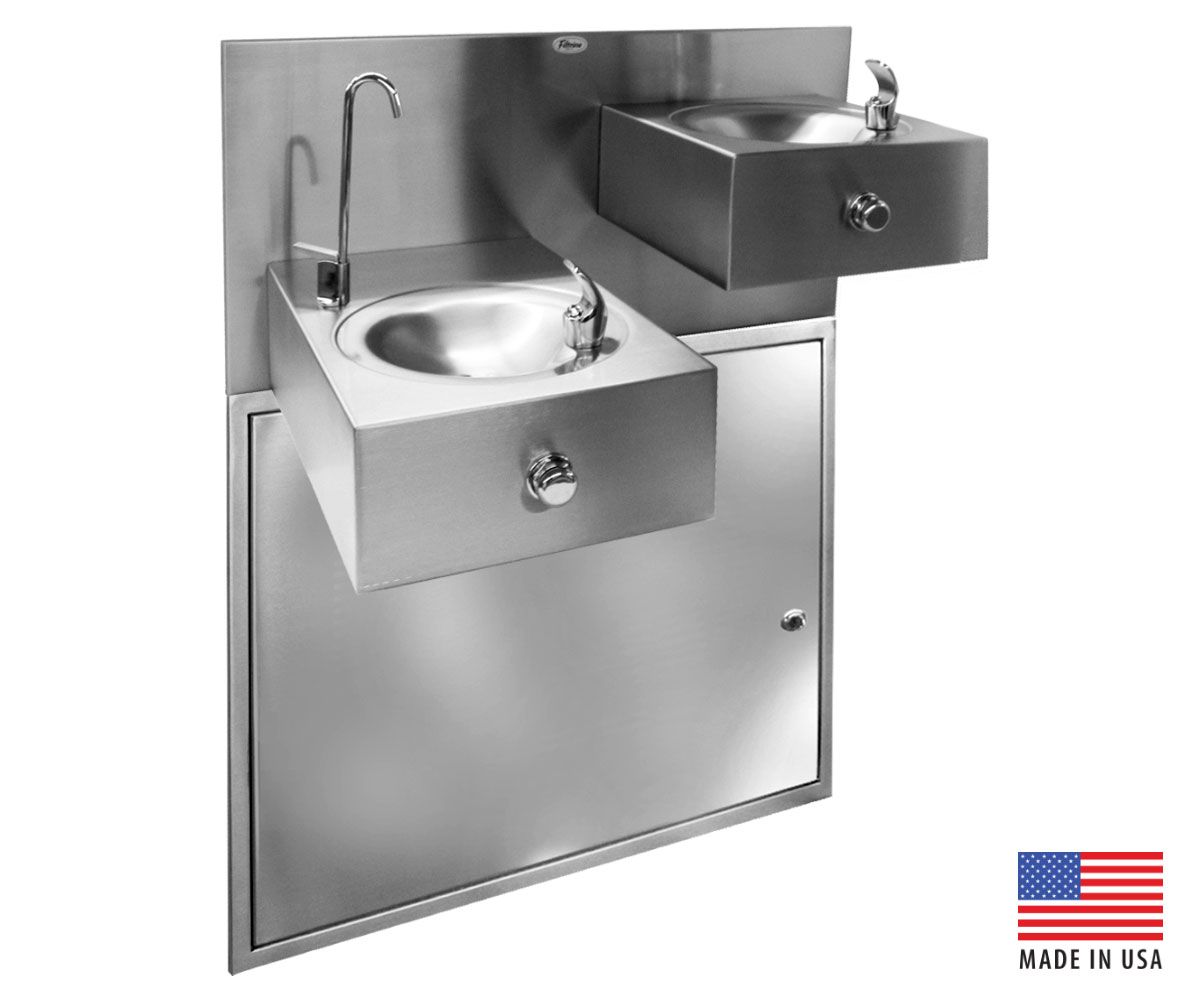

Filtrine FC-90-HL High/Low Drinking Fountain
