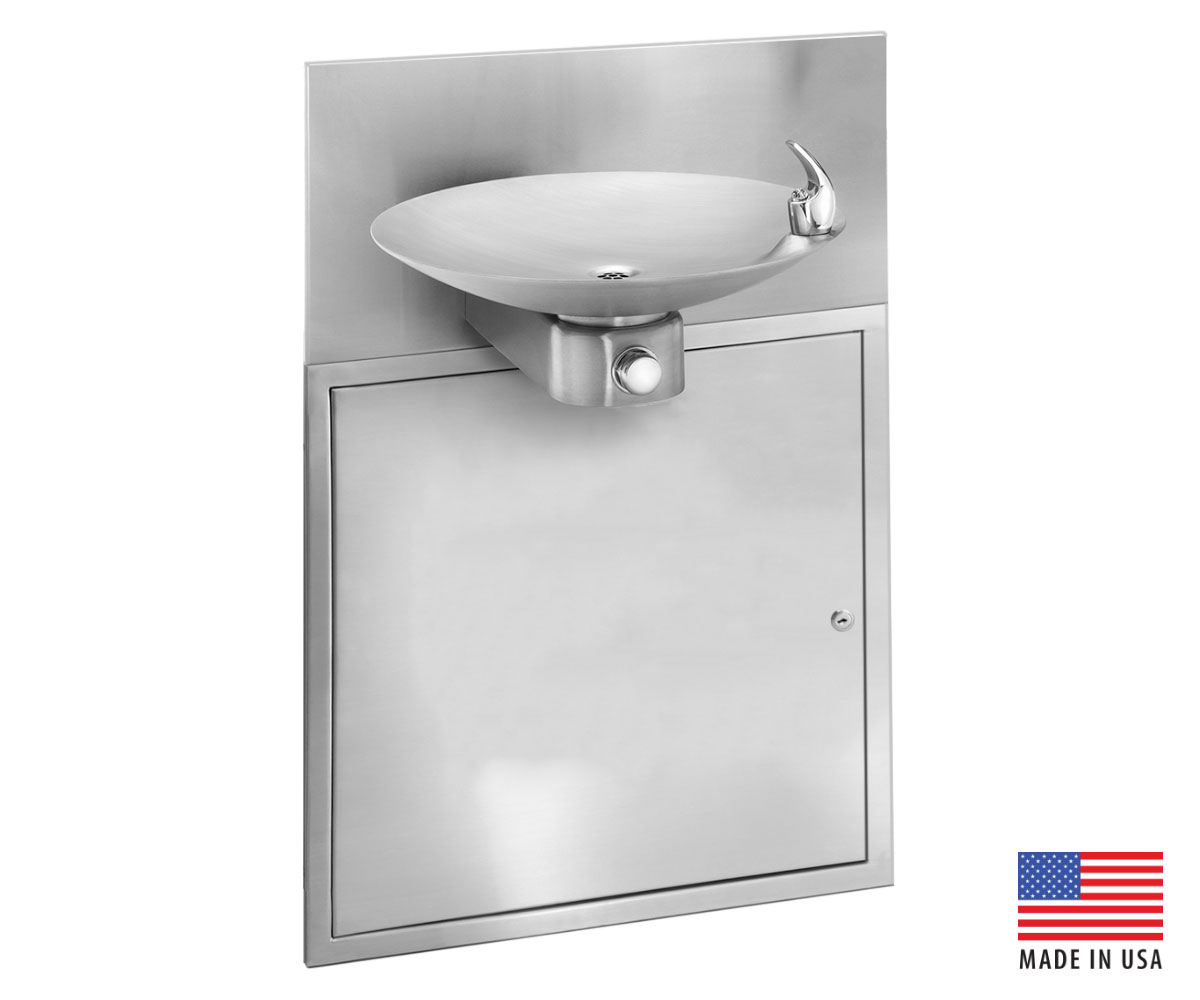

Filtrine 107-16-TM Drinking Fountain
Wall-Mounted, Single Bowl, Purifier
This model combines our sleek 107-16 fountain with a Filtrine Taste Master® water purifier in the cabinet in the wall below. Made in your choice of 16 gauge stainless steel or bronze, with 14 gauge support arms, the fountain features a seamless bowl with a welded rim, which is ground and polished to a finely tapered edge. The Taste Master® 0.5 micron carbon block element removes lead, particles, tastes, odors and water-borne pathogens. Matching key-lock access door provides purifier access and security. Durable and beautiful, these fountains are available in a wide range of finishes and options including "Hands Free".
Select Your Configuration Options:
The Model 107-16-TM is a wall-mounted drinking water fountain. The 16” diameter 16 ga. round bowl has an integral drain. Overall fountain height is 3-1/4”. The hand-polished bronze finish comes in either #4 Satin (standard), or in #8 Mirror or Oil-Rubbed or Statuary Bronze. The hand-polished stainless steel drinking fountain and cover plate can be finished in your choice of either #4 Satin (standard), or #8 Mirror. The copper/brass waterways are 100% lead-free—NO PLASTIC TUBING/CONNECTORS ARE USED. The Filtrine Taste Master® water purifier is located behind access panel directly below fountain.
Filtrine’s 107-16-TM fountain meets or exceeds ADA requirements for spout height, spout location, controls and clearances as specified in the Federal Register.
Receptor: 16 ga, 16” diameter seamless bowl design with welded rim, ground and polished to a finely tapered edge with 1/32” radius. ADA compliant with 18″ projection from cover plate to rim
Underbowl: Raised from support arm by 1/2” collar to provide an aesthetically pleasing profile
Support Arm: 4-3/8” wide by 2-5/8” high — in 14 gauge
Mounting Plate: 1/4” steel plate 10-1/2” high for vertical strength, 15-1/2” wide with 3/8”steel tongue projecting into support arm for maximum horizontal stability
Cover Plate: 16 ga stainless steel or bronze, 16″W x 3/8″D x 27″H [35″H w/optional bottle filler], and fits over mounting plate, secured by fountain arm
Purifier: Taste Master Purifier
- Filtrine Drinking Water Equipment Guide
- Filtrine “Hands Free” Drinking Water Equipment Guide
- Filtrine Drinking Fountain Finishes Guide
- Filtrine NSF-ANSI 372 Lead-Free Compliant Intertek Test Report
- 107-16-TM Specification Sheet
