Filtrine 107-16-RA-HL High/Low Drinking Fountain
Wall-Mounted, Dual Bowl, Tubular Support Arms

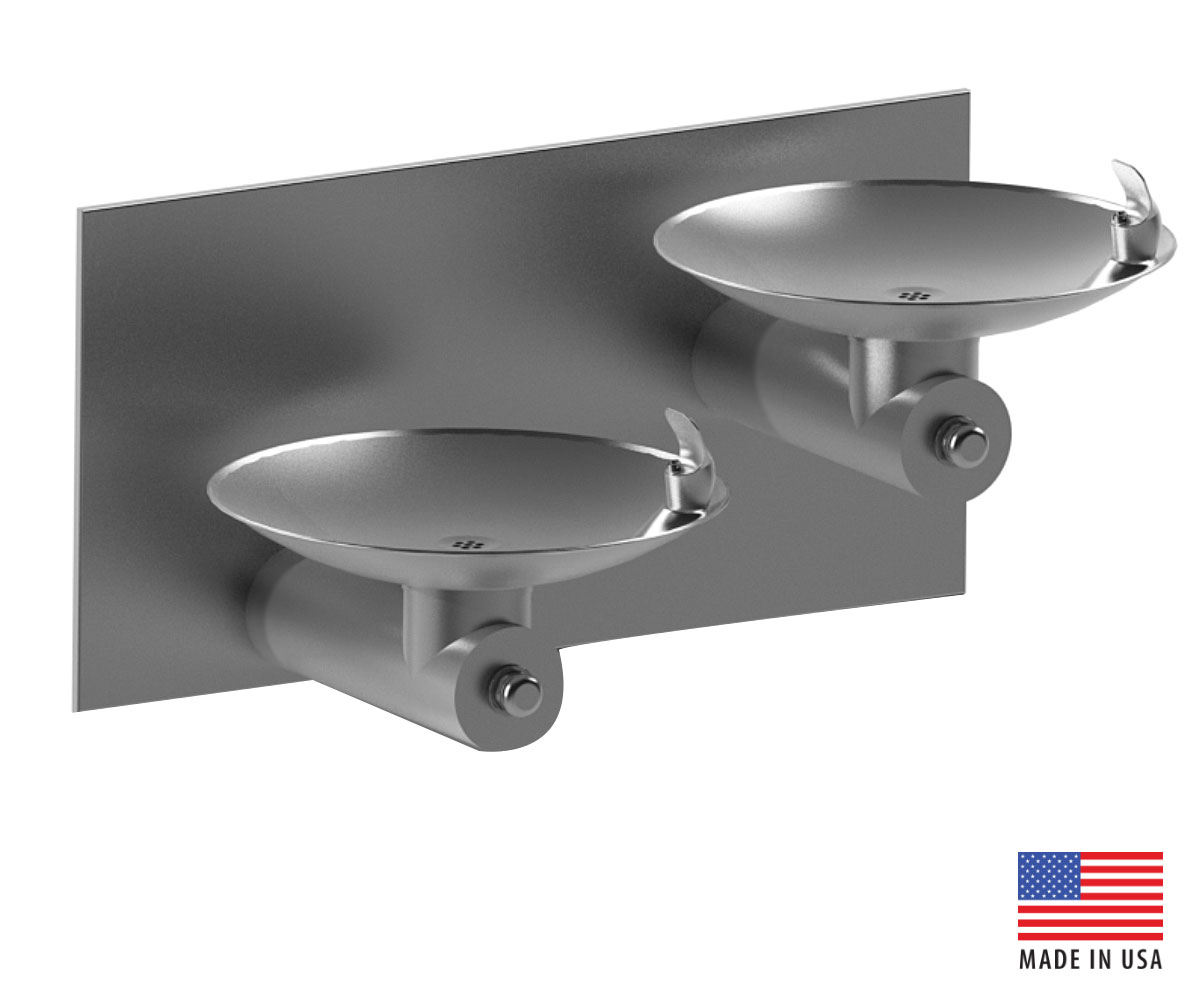

Filtrine’s Model 107-16-RA-HL high/low dual bowl non-recessed drinking water fountain features a sleek ADA compliant design. Made in your choice of 16 gauge stainless steel or bronze, with distinctive round 14 gauge support arms. This striking fountain is hand polished to the desired finish to highlight your decor. Durable and beautiful, these fountains are available in a wide range of finishes and options including "Hands Free".
Select Your Configuration Options:
Specifications:
The Model 107-16-RA-HL is a wall-mounted double bowl drinking water fountain. The 16” diameter 16 ga. round bowls each have an integral drain. Overall fountain height is 3-1/4”. The hand-polished bronze finish comes in either #4 Satin (standard), or in #8 Mirror or Oil-Rubbed or Statuary Bronze. The hand-polished stainless steel drinking fountain and cover plate can be finished in your choice of either #4 Satin (standard), or #8 Mirror. The copper/brass waterways are 100% lead-free—NO PLASTIC TUBING/CONNECTORS ARE USED.
Filtrine’s 107-16-RA-HL fountain meets or exceeds ADA requirements for spout height, spout location, controls and clearances as specified in the Federal Register.
Details
Receptor: 16 ga, 16” diameter seamless double bowl design with welded rim, ground and polished to a finely tapered edge with 1/32” radius. ADA compliant with 18″ projection from cover plate to rim.
Underbowl: Raised from support arm by 1/2” collar to provide an aesthetically pleasing profile
Support Arm: 4” diameter — in 14 gauge
Mounting Plate: 1/4” steel plate, 31 1/2″W x 15 1/2″H (or 20 1/2” H with optional water bottle filler) and 3/8” steel tongues projecting into support arms
Cover Plate: 16 ga stainless steel or bronze, 32″W x 3/8″D x 16″H (or 21” H with optional water bottle filler), and fits over mounting plate, secured by fountain arms
