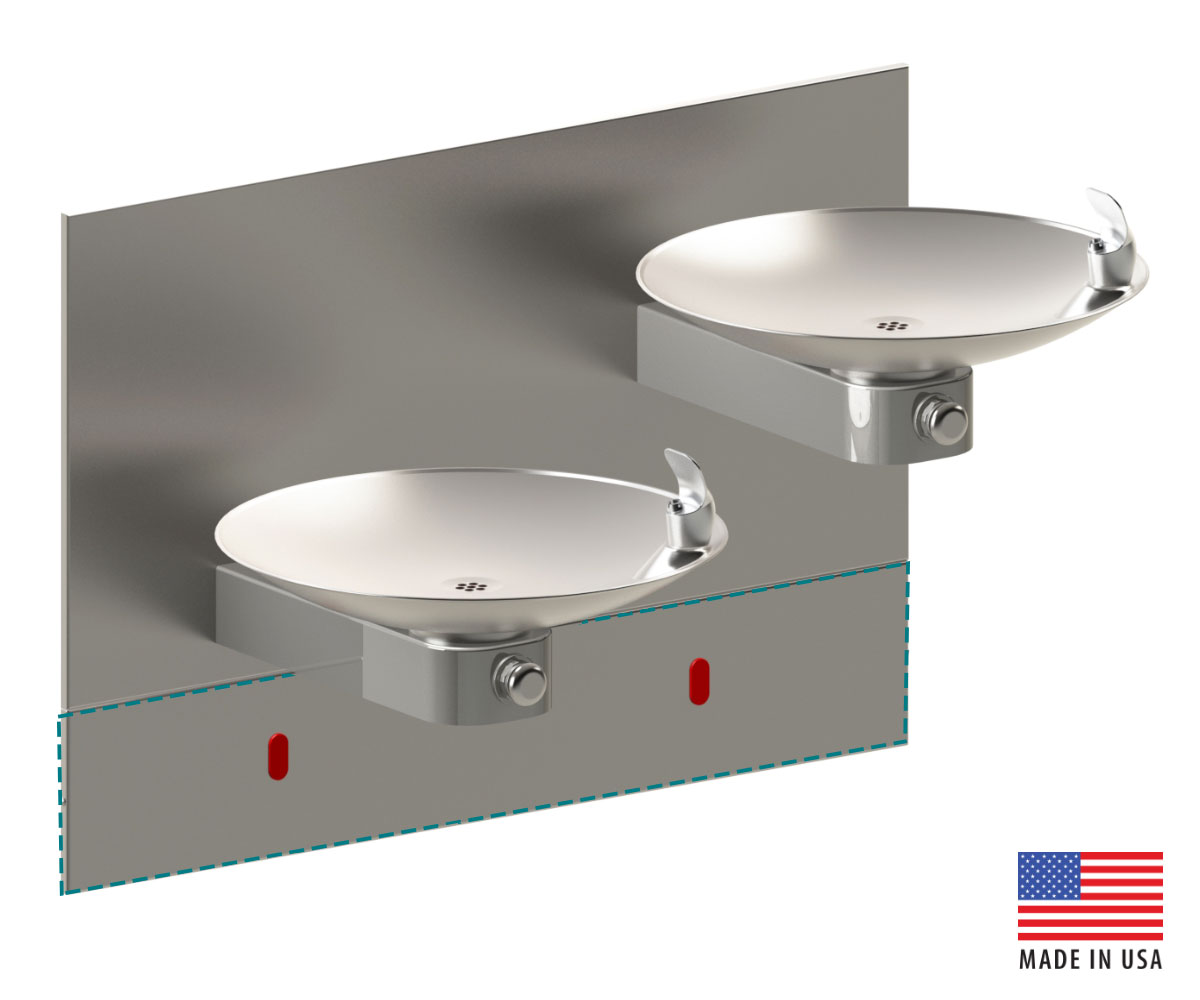

Filtrine HF-RFK-HL “Hands Free” Retrofit Kit for High/Low Drinking Fountains

Wall-Mounted, Dual Bowl, "Hands Free", Retrofit

HF-RFK-HL

This Filtrine Model HF-RFK "Hands Free" retrofit kit with sensors sits under any dual drinking fountain or Filtrine’s classic Model 107-14-HL and 107-16-HL fountains. The access panel can be made in your choice of 16 gauge stainless steel or bronze. Durable and practical, these touchless kits are available in a wide range of finishes and colors.

Order Parts Request a Quote Find a Representative
Filtrine Model HF-RFL-HL Drinking Fountains Retrofit Kit
Filtrine Model HF-RFL-HL Drinking Fountains Retrofit Kit

Select Your Configuration Options:

  • Step 1: Choose your options

    No options have been selected. Please click on images on the right to add to your Request a Quote form. >>

  • Step 2: Choose your finishes

    No finish has been selected. Please click on image on the right to add to your Request a Quote form. >>

Options
This is the only configuration available at this time. Select from finishes below.

Stainless Steel Finishes

Bronze Finishes

Specifications:

The Model HF-RFK-HL is a “Hands Free” retrofit kit for dual drinking fountains, and includes an access panel with the sensors. There are two flow-through regulators that replace the button activated regulators in the existing fountain. Sensors can be located under one or both fountains.

For single-bowl drinking fountains, see the Model HF-RFK retrofit kit.

The hand-polished bronze finish is available in either #4 Satin (standard), or in #8 Mirror or Oil-Rubbed or Statuary Bronze. The hand-polished stainless bottle filler and cover plate can be finished in your choice of either #4 Satin (standard), or #8 Mirror. The copper/brass waterways are 100% lead-free—NO PLASTIC TUBING/CONNECTORS ARE USED.

Details

“Hands free” components are factory-assembled in electrical boxes mounted by installer to blocking under existing mounting plate.

Includes:

  • [2] sensors, electrical boxes (two per sensor), solenoid valves, battery packs, flow-through regulators and circuit boards to adjust sensor distance
  • [8] lithium AA batteries*, providing approximately 400,000 activation cycles
  • “Hands Free” and “Waving Hand” permanent labels

*115v AC option available
