Chill Rolls

Filtrine chillers provide accurate chill roll temperature control. This increases speed and dependability of paper or plastic converting, laminating, printing and waxing machines.

Request a Quote
Find a Rep
Grid View List View 1-12 of 107

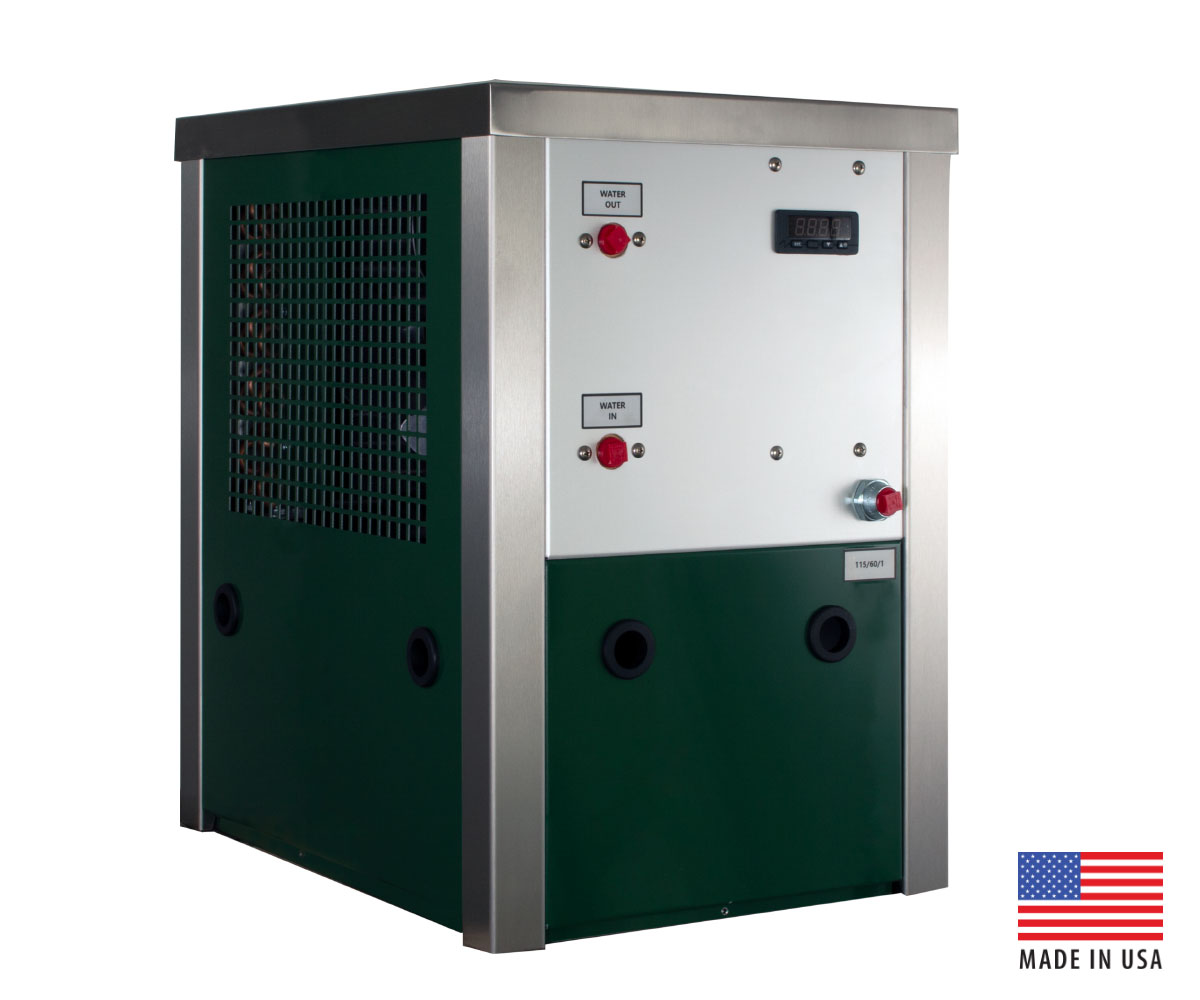

Filtrine Closed Loop PCP-25-2 Chiller

With 1/4 HP Compressor, 1/4 HP Pump, 2 gal Storage Capacity
PCP-25-2
Filtrine Typical Model PCP-POC 25-100 Chillers
Capacity Outlet Temp
MBH* Watts °F °C
2.4 703 68 20
1.8 614 50 10
1.3 444 30 -1

*1,000 BTUs per hour

Standard Dimensions:
22"W x 16"D x 24"H

Learn More

Filtrine Open Loop POC-25-2 Chiller

With 1/4 HP Compressor, 1/4 HP Pump, 2 gal Storage Capacity
POC-25-2
Filtrine Typical Model PCP-POC 25-100 Chillers
Capacity Outlet Temp
MBH* Watts °F °C
2.4 703 68 20
1.8 614 50 10
1.3 444 30 -1

*1,000 BTUs per hour

Standard Dimensions:
22"W x 16"D x 24"H

Learn More

Filtrine One-Pass PC-25-2 Chiller

With 1/4 HP Compressor, 2 gal Storage Capacity
PC-25-2
Filtrine Typical Model PC 25-200 One Pass Chiller
Capacity Outlet Temp
MBH* Watts °F °C
2.4 703 68 20
1.8 614 50 10
1.3 444 30 -1

*1,000 BTUs per hour

Standard Dimensions:
22"W x 16"D x 24"H

Learn More

Filtrine Closed Loop PCP-33-3 Chiller

With 1/3 HP Compressor, 1/14 HP Pump, 2 gal Storage Capacity
PCP-33-3
Filtrine Typical Model PCP-POC 25-100 Chillers
Capacity Outlet Temp
MBH* Watts °F °C
3.5 1025 68 20
2.8 820 50 10
2.0 586 30 -1

*1,000 BTUs per hour

Standard Dimensions:
22"W x 16"D x 24"H

Learn More

Filtrine Open Loop POC-33-3 Chiller

With 1/3 HP Compressor, 1/14 HP Pump, 2 gal Storage Capacity
POC-33-3
Filtrine Typical Model PCP-POC 25-100 Chillers
Capacity Outlet Temp
MBH* Watts °F °C
3.5 1025 68 20
2.8 820 50 10
2.0 586 30 -1

*1,000 BTUs per hour

Standard Dimensions:
22"W x 16"D x 24"H

Learn More

Filtrine One-Pass PC-33-3 Chiller

With 1/3 HP Compressor, 2 gal Storage Capacity
PC-33-3
Filtrine Typical Model PC 25-200 One Pass Chiller
Capacity Outlet Temp
MBH* Watts °F °C
3.5 1025 68 20
2.8 820 50 10
2.0 586 30 -1

*1,000 BTUs per hour

Standard Dimensions:
22"W x 16"D x 24"H

Learn More

Filtrine Closed Loop PCP-50-5 Chiller

With 1/2 HP Compressor, 1/8 HP Pump, 5 gal Storage Capacity
PCP-50-5
Filtrine Typical Model PCP-POC 25-100 Chillers
Capacity Outlet Temp
MBH* Watts °F °C
5.0 1465 68 20
4.0 1172 50 10
3.0 879 30 -1

*1,000 BTUs per hour

Standard Dimensions:
26"W x 16"D x 30"H

Learn More

Filtrine Open Loop POC-50-5 Chiller

With 1/2 HP Compressor, 1/8 HP Pump, 5 gal Storage Capacity
POC-50-5
Filtrine Typical Model PCP-POC 25-100 Chillers
Capacity Outlet Temp
MBH* Watts °F °C
5.0 1465 68 20
4.0 1172 50 10
3.0 879 30 -1

*1,000 BTUs per hour

Standard Dimensions:
26"W x 16"D x 30"H

Learn More

Filtrine One-Pass PC-50-5 Chiller

With 1/2 HP Compressor, 5 gal Storage Capacity
PC-50-5
Filtrine Typical Model PC 25-200 One Pass Chiller
Capacity Outlet Temp
MBH* Watts °F °C
5.0 1465 68 20
4.0 1172 50 10
3.0 879 30 -1

*1,000 BTUs per hour

Standard Dimensions:
26"W x 16"D x 30"H

Learn More

Filtrine Closed Loop PCP-75-7 Chiller

With 3/4 HP Compressor, 1/3 HP Pump, 8 gal Storage Capacity
PCP-75-7
Filtrine Typical Model PCP-POC 25-100 Chillers
Capacity Outlet Temp
MBH* Watts °F °C
7.6 2227 68 20
6.0 1758 50 10
4.5 1319 30 -1

*1,000 BTUs per hour

Standard Dimensions:
28"W x 20"D x 36"H

Learn More

Filtrine Open Loop POC-75-7 Chiller

With 3/4 HP Compressor, 1/3 HP Pump, 8 gal Storage Capacity
POC-75-7
Filtrine Typical Model PCP-POC 25-100 Chillers
Capacity Outlet Temp
MBH* Watts °F °C
7.6 2227 68 20
6.0 1758 50 10
4.5 1319 30 -1

*1,000 BTUs per hour

Standard Dimensions:
28"W x 20"D x 36"H

Learn More

Filtrine One-Pass PC-75-7 Chiller

With 3/4 HP Compressor, 8 gal Storage Capacity
PC-75-7
Filtrine Typical Model PC 25-200 One Pass Chiller
Capacity Outlet Temp
MBH* Watts °F °C
7.6 2227 68 20
6.0 1758 50 10
4.5 1319 30 -1

*1,000 BTUs per hour

Standard Dimensions:
28"W x 20"D x 36"H

Learn More
1-12 of 107
