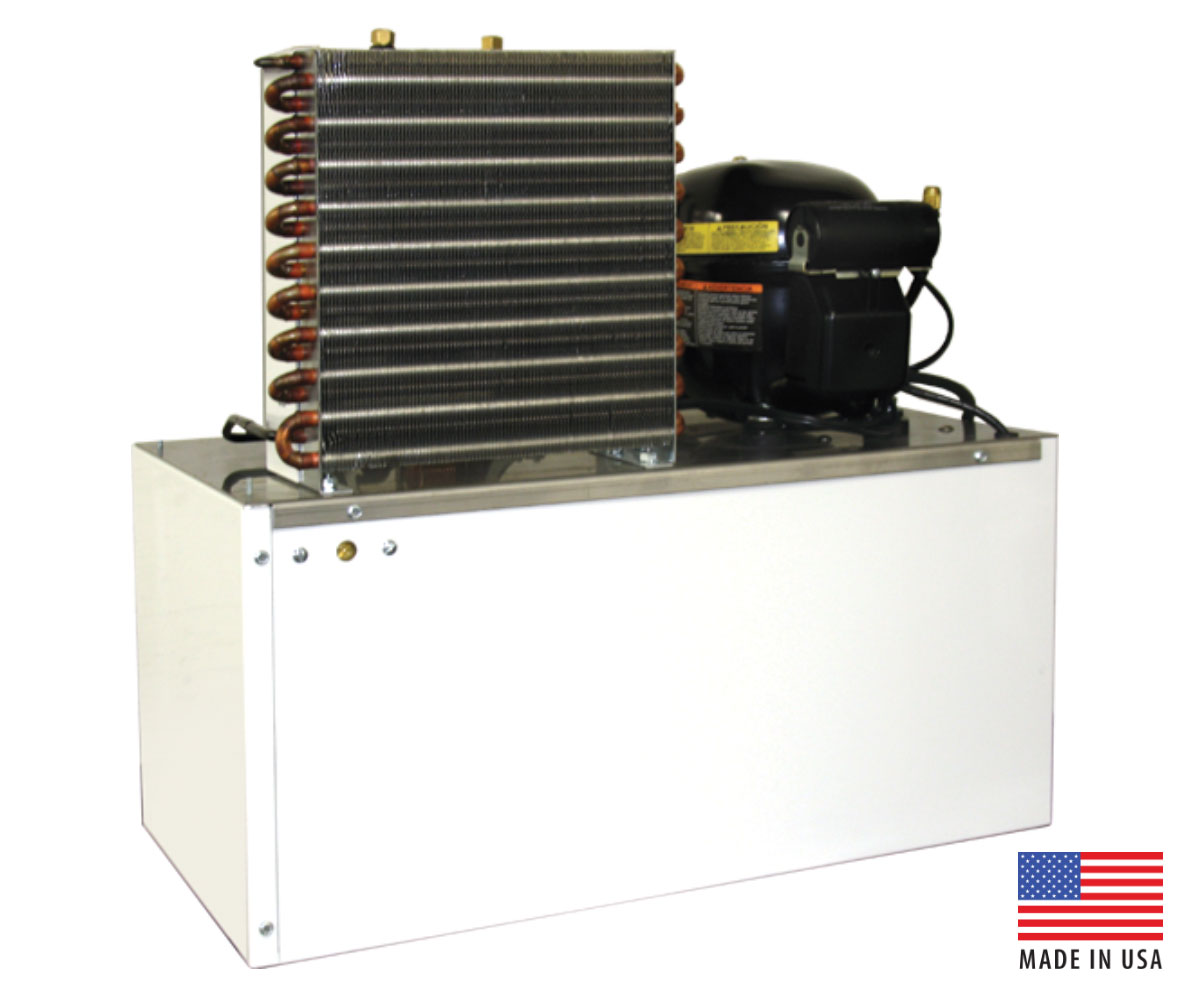

Filtrine M-6-CIA Drinking Water Cabinet Insert Chillers
Persons Served: 288, 1/3 HP Compressor, 6 gal Storage Capacity
Filtrine's non-recirculating Model M-6-CIA cabinet insert chiller is a versatile unit for food service designers and kitchen equipment manufacturers offering "packaged" chilled drinking water with any custom cabinet. The models provide space-saving, concealed, in-cabinet or in-wall water cooling for cafeterias and food service areas in schools, colleges, offices, etc. These units are available with air or water-cooled condensers. Consider adding a Taste Master® purifier.
Select Your Configuration Options:
Cabinet insert chiller for dispensing cooled drinking water to outlets in a serving counter. Ready for fast installation and plug-in operation. Includes a 6 gal. storage tank. Serves a population of 288, assuming 1 quart per day per person typical usage. Digital temperature display with glass braided thermocouple probe. The digital controller is factory set and can be selected for fahrenheit or celsius display.
The digital temperature display comes with a glass braided thermocouple probe. The digital controller is factory set and can be selected for Fahrenheit or Celsius display.
Options include a hinged access grille in the finish of your choice with key lock for security for the purifier, and a gooseneck bottle filler with either a lever or push button valve.
Hourly Capacity 80°F to 50°F(Gal): 30
Persons Served: 288
Tank Capacity (Gal): 6
Compressor Motor (HP): 1/3
Oversized Condenser: Choose from air (requiring louvered door) or water, contact the factory for more information.
Supply Power: 115/60/1 FLA 6 [Typical], 6′ power cord
Grill: Hinged access with key lock. Dimensions are 26″W x 26″H
Chiller Dimensions (in): 23W x 12D x 24H
Optional Purifier: 0.5 micron Taste Master
Optional UV Water Sterilizer: Steri Flo Model S
Optional Gooseneck Bottle Filler: Model CC-161 installed in the sink above
